Chebyshev BEF Calculator

切比雪夫带阻滤波器设计





n fc [MHz] BW [MHz]   Zo [ohm] ripple [dB]
>>>

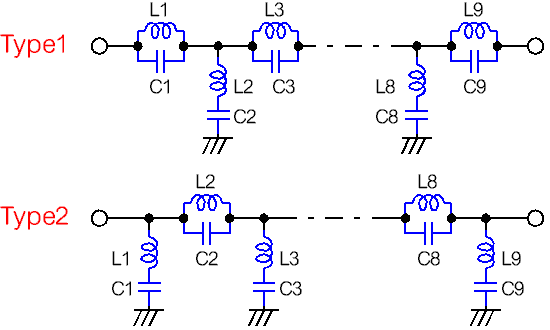

Type1 L1 L2 L3 L4 L5 L6 L7 L8 L9
[nH]
C1 C2 C3 C4 C5 C6 C7 C8 C9
[pF]


Type2 L1 L2 L3 L4 L5 L6 L7 L8 L9
[nH]
C1 C2 C3 C4 C5 C6 C7 C8 C9
[pF]

[ How to use ]
1. Input resonant circuit number (n), center frequency (fc), bandwidth (BW),
characteristic impedance (Zo), ripple, and click on [ Calculate ] button.
2. A calculation result is indicated.

[ Note ] The number of resonant circuits is only an odd number individual.
(Even if an even number is inputted to n, 1 is added automatically,
and changed into the odd number.)
