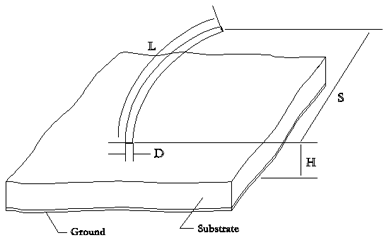

Wire of Circular Cross Section (WIRE)

Properties	Description	Units	Default	Range
D	Wire diameter	m	Required	> 0
L	Wire length	m	Required	> 0
R	Wire resistivity	micro-Ohm*cm	2.44	³ 0
H	Height of wire ends above ground plane	m	Required	> 0
S	Separation between wire ends	m	L	> 0

Notes

1. H > 0

2. If L = S, a straight section is assumed.

3. This case is useful for inter-chip bond wires.

4. The resistivity is assumed to be that of gold wire (2.44μΩ×cm) unless some other value is assigned to R.

5. If S is not supplied, S=L is assumed.

6. This model considers the effects of dielectric and metal losses. It is based on transmission line theory with the dispersion effects considered.

WIRE:NAME n1 n2 D=val L=val [S=val] [R=val] H=val

WIRE:WIRE1 1 2 D=0.5MIL L=10MIL H=27MIL

1. Ramo, Whinnery, and Van Duzer, Fields and Waves in Communication Electronics, John Wiley & Sons, Inc., New York, 1965, Chapter 8.

2. Green, Leibe, and Curtis, “Formulas for Shielded Pairs,” Bell Systems Tech. Journal, pp 248-284, April, 1936.
