Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Sources >
   Periodic Step Waveform Generator (STEPSRC)

Periodic Step Waveform Generator (STEPSRC)






Property

Description

Units

Default

Range/Type

NSAMP

Number of samples of the output waveform

None

100

(0, Inf)/Integer

SAMPLE_RATE

Output sample rate

Hz

1000

(0, Inf)/Real

PERIOD

Time period of step

Sec

0.01

[0, Inf)/Real

A

Amplitude of step

Volt

1v

(0,Inf)/Real

T1

Start time of step

Sec

0s

[0, Inf)/Real

T2

Stop time of step

Sec

1s

[0, Inf)/Real

ROUT

Output impedance

Ohm

0

[0, Inf)/Real

Ports

Output

Output of voltage waveform generator (real)



Notes

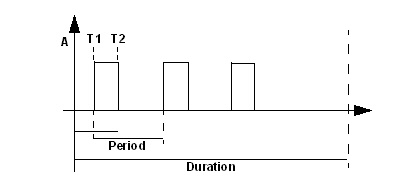

1. This model generates a periodic step voltage waveform, as follows:





Netlist Form

STEPSRC:Name n1 NSAMP=val SAMPLE_RATE=val PERIOD=val A=val
+ T1=val T2=val [Rout=Val]

Netlist Example

STEPSRC:1 NSAMP=1000 SAMPLE_RATE=100KHZ PERIOD=10mS A=1V T1=5mS

+ T2=8mS
