   Shorted Stub, Physical Length (SSTK, SSTK_REF)

Shorted Stub, Physical Length (SSTK, SSTK_REF)



[spacer]

Schematic Symbol SSTK



[spacer]

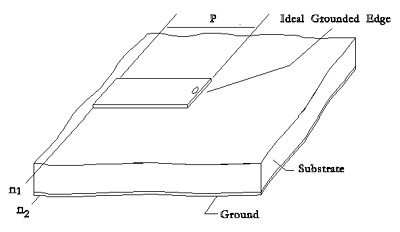

Schematic Symbols SSTK (with ref node)






Properties

Description

Units

Default

Range

Z

Characteristic impedance

of lossless line

Ohms

Required

> 0

K

Effective dielectric constant

none

Required

> 0

P

Physical length

m

Required

> 0

A

Attenuation at frequency F in dB/m

none

0.0

³ 0

F

Reference frequency for A

Hz

1GHz

³ 0



Notes

Netlist Form

SSTK:NAME n1 [n2] Z=val P=val K=val [A=val] [F=val]

Netlist Example

Component SSTK:

SSTK:SSTK1 1 Z=50 P=0.387IN K=6.5 A=0.00001 F=1GHZ

Component SSTK_Ref:

SSTK:SSTK1 1 2 Z=50 P=0.387IN K=6.5 A=0.00001 F=1GHZ
