Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >

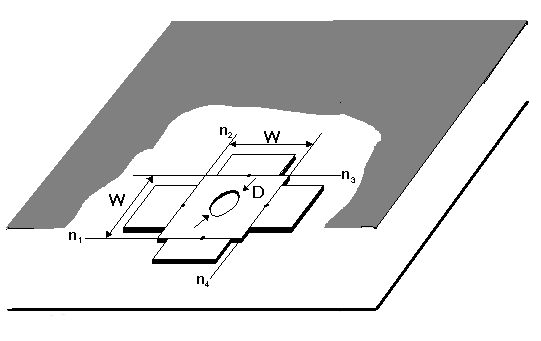

   SL VIA Pad (SLVIAP, SLVIAP_Ref)

SL VIA Pad (SLVIAP, SLVIAP_Ref)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Width of the square pad

m

Required

> 0

D

Diameter of VIA hole

m

Required

> 0

DG

Diameter of the lower VIA hole

m

D

>0

sub

Substrate name

none

Required

string



Notes

1. The pad is connected through a via to a ground.

1. Unconnected nodes are considered to be open.

2. The pad is square.

3. Transitions to connected transmission lines are not included in this model.

Netlist Form

SLVIAP:NAME n1 n2 n3 n4 [ n5 ] W=val D=val [DG=val] SUB=label

Netlist Example

SLVIAP:VIAP1 1 2 3 4 W=100UM D=50UM SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References

1. Unpublished equations developed by Ansoft LLC.
