Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >
   SL Transmission Line, Electrical Length (SLTRLE, SLTRLE_REF)

SL Transmission Line, Electrical Length (SLTRLE, SLTRLE_REF)



[spacer]

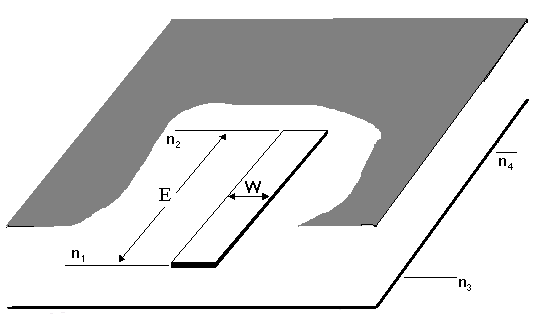

Schematic diagram, SLTRLE



[spacer]

Schematic diagram, SLTRLE_REF



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

E

Electrical length

deg

Required

(-¥,¥)

F

Reference frequency for E

Hz

Required

> 0

sub

Substrate name

none

Required

string

Notes

1. To get accurate results, the following condition should be satisfied: W/B < 10, where B is the ground plane spacing defined in the .SUB statement.

Netlist Form

SLTRLE:NAME n1 n2 [ n3 ] [ n4 ] W=val E=val F=val SUB=label

Netlist Example

SLTRLE:TRLE1 1 2 W=25mil E=45 F=1.5GHZ SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References
