Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >
   SL Transmission Line, Physical Length (SLTRL, SLTRL_REF)

SL Transmission Line, Physical Length (SLTRL, SLTRL_REF)



[spacer]

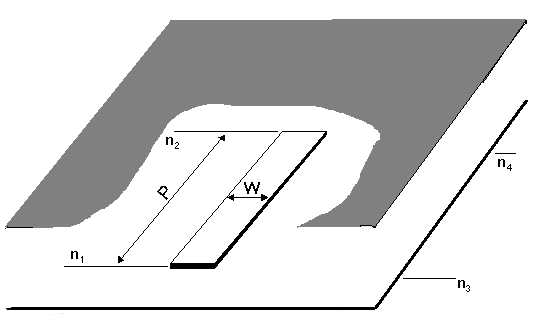

Schematic diagram, SLTRL



[spacer]

Schematic diagram, SLTRL_REF



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

P

Physical Length

m

Required

(-¥,¥)

sub

Substrate name

none

Required





Notes

1. To get accurate results, the following condition should be satisfied: W/B < 10, where B is the ground plane spacing defined in the .SUB statement.

Netlist Form

SLTRL:NAME n1 n2 [ n3 ] [ n4 ] W=val P=val SUB=label

Netlist Example

SLTRL:TRL1 1 2 W=25mil P=0.387in SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References
