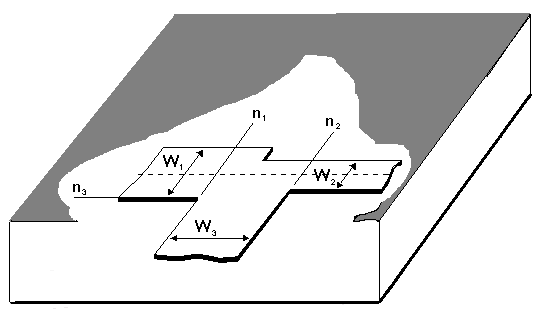

SL TEE, Reference Planes at Edge (SLTEEE)

SL TEE, Reference Planes at Edge (SLTEEE)

Properties	Description	Units	Default	Range
W1	Width of line connected to node n1	m	Required	> 0
W2	Width of line connected to node n2	m	Required	> 0
W3	Width of line connected to node n3	m	Required	> 0
NSUM	Number of modes considered in the field expansion	none	3	[1,9]
sub	Substrate name	none	Required	string

Notes

1. To obtain accurate results, the following condition should be satisfied: B/l_g<< 1, where B is the ground-to-ground distance defined in the corresponding .SUB statement, and l_g is the guide wavelength.

2. The collinear lines are connected to nodes n1 and n2 and have widths W1 and W2; the perpendicular line is connected to node n3 and has width W3.

3. If W1 > W2: Node n3 is collinear with W1

4. If W2 > W1: Node n3 is collinear with W2.

Netlist Form

SLTEEE:NAME n1 n2 n3 W1=val W2=val W3=val [NSUM=val] SUB=label

Netlist Example

SLTEEE:TEEE1 1 2 3 W1=32MIL W2=48MIL W3=54MIL SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.
