Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >

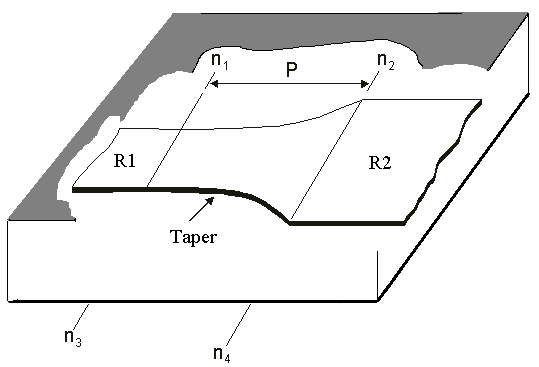

   SL Tapered Line, Z Specified (SLTAPZ, SLTAPZ_REF)

SL Tapered Line, Z Specified (SLTAPZ, SLTAPZ_REF)



[spacer]

Schematic symbol SLATAPZ



[spacer]

Schematic symbol SLATAPZ_REF




Properties

[spacer]

Description

Units

Default

Range

R1

Impedance at node n1

W

Required

> 0

R2

Impedance at node n2

W

Required

> 0

P

Physical length of line

m

Required

> 0

TAPER

Taper type

keyword

LinWidth

[LinWidth, LinImp,

ExpWidth, ExpImp]

sub

Substrate name

none

Required

string



Notes

1. The following conditions should be satisfied: 0.01 £ W/B £ 100, and MAX(W1,W2) £ 0.5×lg, where lg is the guide wavelength.

2. Node numbers can be reversed such that n1 (associated width W1) is at the wide end of the taper.

3. The taper type is set through the keyword parameter TAPER, such that:
LinWidth: Linear Width
ExpWidth: Exponential Width
LinImp: Linear Impedance
ExpImp: Exponential Impedance

Netlist Form

SLTAPZ:NAME n1 n2 [ n3 ] [ n4 ] R1=val R2=val P=val TAPER=val SUB=label

Netlist Example

SLTAPZ:TAPZ1 1 2 R1=50 R2=100 P=100IN TAPER=LinImp SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References
