Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >

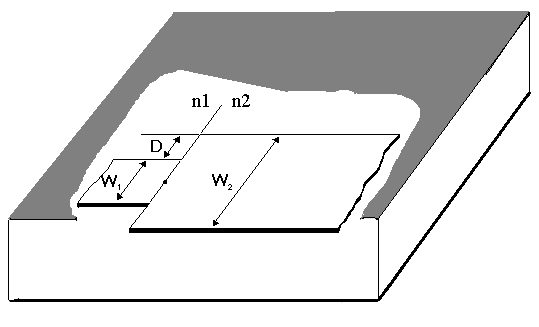

   SL Step (SLSTEP)

SL Step (SLSTEP)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W1

Width of line 1

m

Required

> 0

W2

Width of line 2

m

Required

> 0

D

Offset between lines

m

|W1-W2|/2

[ 0,|W1-W2| ]

sub

Substrate name

none

Required

string



Notes

1. The following condition should be satisfied to get accurate results:
max(W1,W2)/lg £ 1.0, where lg is the guide wavelength.

Netlist Form

SLSTEP:NAME n1 n2 W1=val w2=val [D=val] SUB=label

Netlist Example

SLSTEP:STEP2 1 2 W1=32MIL W2=0.1IN D=10MIL SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References
