Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >

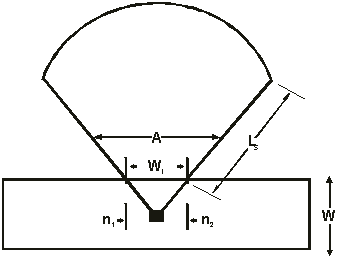

   SL Radial Stub, Shunt, Stub Edge Specified (SLRSTSL)

SL Radial Stub, Shunt, Stub Edge Specified (SLRSTSL)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

A

Aperture angle

degree

Required

(0,180)

WI

Stub aperture width

m

Required

> 0

LS

Stub edge length

m

Required

> 0

W

Feedline width

m

Required

> 0

sub

Substrate name

none

Required

string



Notes

1. Valid for B/lg << 1, where B is the ground-to-ground distance defined in the corresponding .SUB statement, and lg is the guide wavelength.

2. Inline configurations of the Radial Stub model include coupling to the main line. Implied SLTEE or SLCROS junctions are included in this model.

3. The stub is open at the outer radius RL.

4. Conductor and dielectric losses are included if the metallization or the surface resistivity are specified with the substrate data.

Netlist Form

SLRSTSL:NAME n1 n2 A=val WI=val LS=val W=val SUB=label

Netlist Example

SLRSTSL:RSTST1 1 2 A=30 WI=5MIL LS=95MIL W=25MIL SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.

References

1. J. P. Vinding, “Radial Line Stubs as Elements in Stripline Circuits,” NEREM Record, 1967, pp. 108-109.

2. Jorgen P. Vinding, “Stripline Electrical Filter Element,” United States Patent Office, number 3, 566, 315, February 23, 1971.

3. F. Gianinni, “CAD-Oriented Lossy Models for Radial Stubs,” IEEE MTT-36, No. 2, Feb. 1988, pp. 305-313.
