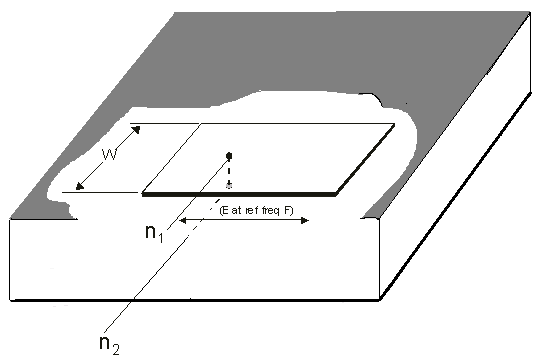

   SL Open Stub, Electrical Length (SLOSTE, SLOSTE_REF)

SL Open Stub, Electrical Length (SLOSTE, SLOSTE_REF)



[spacer]

Schematic symbol, SLOSTE



[spacer]

Schematic symbol, SLSOSTE_REF



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

E

Electrical length

degrees

Required

(-¥,¥)

F

Reference frequency for E

Hz

1 GHz

> 0

sub

Substrate name

none

Required

string



Notes

1. For accurate results, the following should be satisfied:
W/B < 10 and T > 0,
where B is the ground plane separation defined in the .SUB statement.

2. The SLOSTE model is equivalent to a transmission line model followed by an open model.

Netlist Form

SLOSTE:NAME n1 [ n2 ] W=val E=val [F=val] SUB=label

Netlist Example

SLOSTE:OSTE1 1 W=25MIL E=45 F=1.5GHZ SUB=SUB1

where SUB1 needs to be defined in the corresponding .SUB statement.
