System Simulator > SL Offset Coupled Lines, Physical Length (SLOCL)
![]() ![]()
![]() ![]()

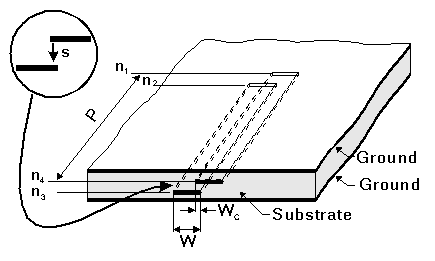

Notes1. The following conditions should be satisfied: -2.5 < WC/B £ W/B, and W/(B-S) ³ 0.35, where B is the ground plane spacing defined in the .SUB statement. 2. The results may not converge for all values of WC/B. 3. If WC/W is larger than or equal to 0.9, the conductor loss attenuation factors (AE and AO) are estimated by the program, unless the user specifies them in the input. 4. If WC/W is less than 0.9, the user has to define AE and AO if their effect is to be taken into consideration. They are not calculated by the program. 5. If the user specifies AE and AO, then the reference frequency F has to be defined too. If F is not defined, then AE and AO will be reset to zero. 6. Metallization thickness is taken into account in the analysis. Netlist FormSLOCL:NAME n1 n2 n3 n4 W=val S=val
WC=val P=val Netlist ExampleSLOCL:OCL1 1 2 3 4 W=50MIL S=40MIL WC=10MIL AE=0.2
AO=0.2 where SUB1 needs to be defined in the corresponding .SUB statement. References1. J. P. Shelton, “Impedances of Offset Parallel Coupled Strip Transmission Line,” IEEE Trans. on MTT, Jan. 1966, pp. 7-15, and correction in MTT, May 1966, p. 249. HFSS视频教程 ADS视频教程 CST视频教程 Ansoft Designer 中文教程 |
