Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Stripline >

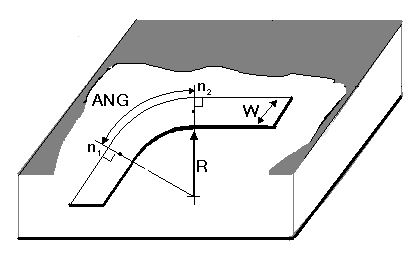

   SL Bend, Radial (SLBENDR)

SL Bend, Radial (SLBENDR)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Width of lines 1 & 2

m

Required

> 0

R

Inner radius of the curve

m

0.

³ 0

ANG

Angle of the bend

degree

90°

(0°,180°]

sub

Substrate name

none

Required

string



Notes

1. Reference planes coincide with the two points where the radius of curvature is perpendicular to the intersecting lines.

Netlist Form

SLBENDR:NAME n1 n2 W=val [R=val] [ANG=val] SUB=label

Netlist Example

SLBENDR:BENDR1 1 2 W=10MIL R=20MIL ANG=60 SUB=SUB1

where SUB1 needs to be defined through the .SUB statement.

References

1. T. Okoshi, Planar Circuits for Microwaves and Lightwaves, Springer-Verlag, Berlin, New York, 1983.
