   SL Bend, Unmitered (SLBEND)

SL Bend, Unmitered (SLBEND)



[spacer]



[spacer]

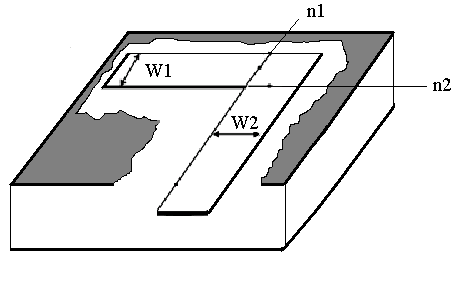

Properties

Description

Units

Default

Range

W1

Width of line 1

m

Required

> 0

W2

Width of line 2

m

Required

> 0

sub

Substrate name

none

Required

string



Notes

1. Reference planes coincide with the inside vertex of the corner.

Netlist Form

SLBEND:NAME n1 n2 W1=val W2=val SUB=label

Netlist Example

SLBEND:BEND1 1 2 W1=0.0103IN W2=0.0163IN SUB=SUB1

where SUB1 needs to be defined through the .SUB statement.

References

1. T. Okoshi, Planar Circuits for Microwaves and Lightwaves, Springer-Verlag, Berlin, New York, 1983.
