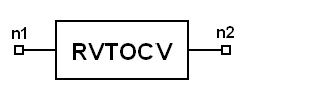

Real Vector to Complex Vector Converter (RVTOCV)

Real Vector to Complex Vector Converter (RVTOCV)

Property	Description	Units	Default	Range/Type
IORQ	in-phase (1) quadrature(0)	None	1	[0, 1]/Integer
RIN	Input impedance	Ohm	Inf	(0, Inf]/Real
ROUT	Output impedance	Ohm	0	[0, Inf)/Real
Ports
Input	Input signal (real vector)
Output	Output signal (complex vector)

Notes

The output complex vector will take the input signal as the real part if IORQ=1; otherwise, if IORQ=0, the output vector will take the input signal as the imaginary part.

Netlist Form

RVTOCV:NAME n1 n2 [IORQ=val] [Rin=val] [Rout=val]

Example

RVTOCV:1 1 2 IORQ = 1
