Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Sources >
   Periodic Pulse Waveform Generator (PULSE)

Periodic Pulse Waveform Generator (PULSE)






Property

Description

Units

Default

Range/Type

NSAMP

Number of samples of the output waveform

None

100

(0, Inf)/Integer

SAMPLE_RATE

Output sample rate

Hz

1000

(0, Inf)/Real

PERIOD

Time period of pulse

Sec

0.01s

(0, Inf)/Real

A

Amplitude of pulse

Volt

1

(-Inf, Inf)/Real

DUTY

Duty cycle

None

0.5

[0, 1]/Real

T1

Pulse rise time

Sec

0

[0, Inf)/Real

T2

Pulse fall time

Sec

0

[0, Inf)/Real

ROUT

Output impedance

Ohm

0

[0, Inf)/Real

Ports

Output

Output signal (real)



Notes

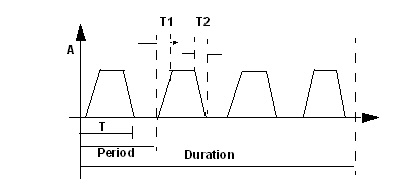

This model generates a periodic pulse voltage waveform, as follows:





Netlist Form

PULSE:Name n1 NSAMP=val SAMPLE_RATE=val PERIOD=val A=val DUTY=val [T1=val] [T2=val] [Rout=Val]

Netlist Example

PULSE 1 NSAMP=1000 SAMPLE_RATE=100KHZ

+ PERIOD=10mS A=1V DUTY=0.3
