   Power Probe (PP)

Power Probe (PP)






Properties

Description

Units

Default

Range/Type

Name

Probe name

None

Required

String



Notes

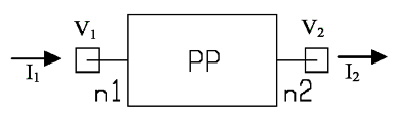

1. The S-Parameters describing this model are given by:

S11 = S22 = 0

S12 = S21 = 1

The above S-parameter values simply describe a connection element. As a result of that, the input voltage V1 at node n1 and the output voltage V2 at n2 are equal and the current at node n1 and n2 is the same. This implies that the power measured at both nodes is the same and given by




[spacer] [spacer] [spacer]

Netlist Form

PP:Name n1

Netlist Example

PP:My_pp 1
