PPDU Frame Former, 802.11a (PFORM11A)

PPDU Frame Former, 802.11a (PFORM11A)

Property	Description	Units	Default	Range/Type
MODULATION	Modulation Type	None	0	[0, 1]/Integer
CODING	Coding Rate	None	0	[0, 2]/Integer
LENGTH	Length of PSDU	None	100	[1, 4095]/Integer
RIN1	Input impedance	Ohm	Inf	(0, Inf]/Real
RIN2	Input impedance	Ohm	Inf	(0, Inf]/Real
RIN3	Input impedance	Ohm	Inf	(0, Inf]/Real
ROUT	Output impedance	Ohm	0	[0, Inf)/Real
Ports
Input1	Preamble field (complex)
Input2	Signal field (complex)
Input3	Data field (complex)
Output	PPDU Frame (complex)

Limits

Notes

1. This model can be used to form PPDU frame, according to IEEE 802.11a standard.

2. Fig.1 shows a block diagram of the IEEE 802.11a baseband transmitter. One sample overlap occurs between preamble and SIGNAL field as well as between SIGNAL field and DATA field. The number of OFDM symbols during DATA field is determined by the three parameters, Modulation, Coding, and Length.. For some details, please refer to the PAD11A model.

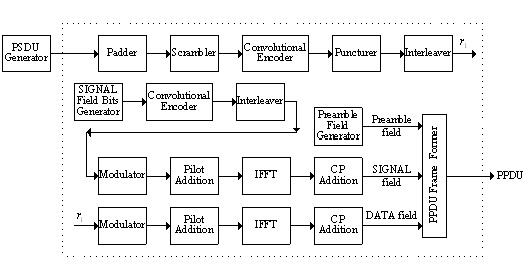

Fig.1 Block diagram of the IEEE 802.11a baseband transmitter

Netlist Form

PFORM11A:NAME n1 n2 n3 n4 [MODULATION =val] [CODING =val]
+ [LENGTH =val] [RIN=val] [RIN1=val] [RIN2=val] [RIN3=val]
+ [ROUT=val]

Netlist Example

PFORM11A:1 1 2 3 4 MODULATION = 2 CODING= 2 LENGTH = 100

References

1. IEEE Std 802.11a, Part 11: “Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) specifications: High-speed Physical Layer in the 5 GHz Band,” ISO/IEC 8802-11:1999/Amd 1:2000(E).
