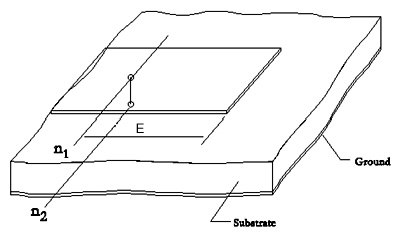

   Open Stub, Electrical Length (OSTE, OSTE_REF)

Open Stub, Electrical Length (OSTE, OSTE_REF)



[spacer]

Schematic Symbol OSTE



[spacer]

Schematic symbol OSTE (with ref node)






Properties

Description

Units

Default

Range

Z

Characteristic impedance

of the lossless line

Ohms

Required

> 0

E

Electrical length

deg

Required

> 0

A

Attenuation at frequency F, in dB/m

none

0



F

Reference frequency for E and A

Hz

Required

> 0



Notes

1. This component is available with and without reference nodes.

2. If node n2 is not to grounded, choose the w/Ref. Node option.

Netlist Form

OSTE:NAME n1 [n2] Z=val E=val F=val [A=val]

Netlist Example

Component OSTE:
OSTE:OSTE1 1 Z=50 E=45 F=1.5GHZ A=0.154

OSTE with reference node:
OSTE:OSTE1 1 2 Z=50 E=45 F=1.5GHZ A=0.154

References
