Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >

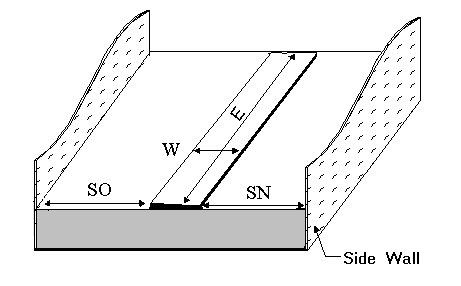

   MS Transmission Line Near Side Wall, Electrical Length (MSTRLSE, MSTRLSE_REF)

MS Transmission Line Near Side Wall, Electrical Length (MSTRLSE, MSTRLSE_REF)



[spacer]

Schematic symbol (MSTRLSE)



[spacer]

Schematic symbol (MSTRLSE_REF)



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

E

Electrical length

deg

Required



F

Reference frequency for E

Hz

109

> 0

SO

Distance of microstrip to left hand enclosure

m

Required

> 0

SN

Distance of microstrip to right hand enclosure

m

Required

> 0

sub

Substrate name

none

Required

string



Notes

1. The MCPL is used in the analysis of this microstrip line.

Netlist Form

MSTRLSE:NAME n1 n2 [ n3 ] [ n4 ] W=val E=val SO=val SN=val [F=val] SUB=label

Netlist Example

MSTRLSE:TRLSE1 1 2 W=25MIL SO=50MIL SN=50MIL E=31.2969 F=10GHZ SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
