Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS Transmission Line, Electrical Length (MSTRLE, MSTRLE_REF)

MS Transmission Line, Electrical Length (MSTRLE, MSTRLE_REF)



[spacer]

Schematic symbol (MSTRLE)

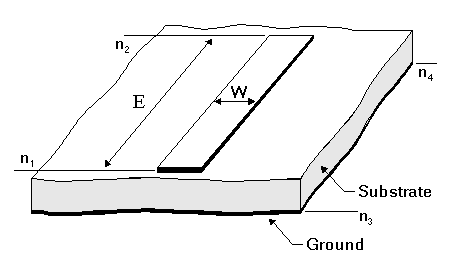

Schematic symbol (MSTRLE_REF)

[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

E

Electrical length

deg

Required



F

Reference frequency for E

Hz

109

> 0

sub

Substrate name

none

Required

string



Notes

1. The following conditions should be satisfied: 0.01 £ W/H £ 10, ER < 18, T £ W, and T £ H/2.

Netlist Form

MSTRLE:NAME n1 n2 [ n3 ] [ n4 ] W=val E=val [F=val] SUB=label

Netlist Example

MSTRLE:TRLE2 1 2 W=10MIL E=45 F=1.5GHZ SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
