   MS Transmission Line, Physical Length (MSTRL, MSTRL_REF)

MS Transmission Line, Physical Length (MSTRL, MSTRL_REF)



[spacer]

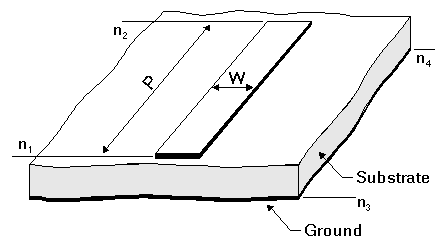

Schematic symbol (MSTRL)


Schematic symbol (MSTRL_REF)

[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Conductor width

m

Required

> 0

P

Physical Length

m

Required



sub

Substrate name

none

Required

string

CoSimulator

Simulation engine

none



Planar EM

CoSimStackup

Stackup used for simulation

none

Layout Stackup

Layout Stackup, Footprint stackup, Substrate



Notes

1. The following conditions should be satisfied: 0.01 £ W/H £ 10, ER < 18, T £ W, and T £ H/2.

Netlist Form

MSTRL:NAME n1 n2 [ n3 ] [ n4 ] W=val P=val SUB=label

Netlist Example

MSTRL:TRL1 1 2 W=10MIL P=250MIL SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
