Ansoft Designer / Ansys Designer 在线帮助文档：

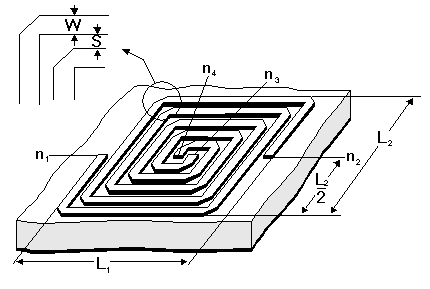

MS Transformer (MSTRF)

Properties	Description	Units	Default	Range
N	Number of turns from node n1 to node n3 or from node n2 to node n4	none	Required	[1,6]
L1	Outer dimension of transformer between nodes n1 and n2	m	Required	> 0
L2	Outer dimension of transformer perpendicular to L1	m	Required	> 0
W	Conductor width	m	Required	> 0
S	Spacing between conductors	m	Required	> 0
sub	Substrate name	none	Required	string

Notes

1. The following conditions have to be satisfied: L1 ³ 4×N×(W+S)+W and L2 ³ 4×N×(W+S)+W.

2. N has to be an integer multiple of 0.5 (i. e., N=1, 1.5, 2, 2.5, ... , 6).

3. 45° chamfered bends are assumed.

4. The reference planes are at the inner edges of the corresponding microstrip lines.

MSTRF:NAME n1 n2 n3 n4 N=val L1=val L2=val W=val S=val SUB=label

MSTRF:TRF1 1 2 0 0 N=2.5 L1=265um L2=245um W=10um S=10um SUB=sub1

where sub1 needs to be defined in the corresponding .sub statement.
