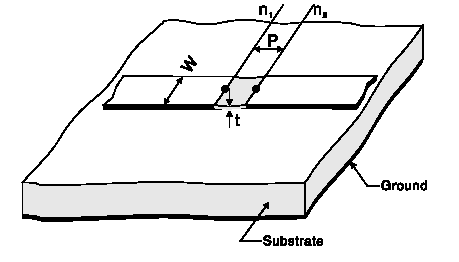

   MS Thin Film Resistor, Bulk Resistivity (MSTFRB)

MS Thin Film Resistor, Bulk Resistivity (MSTFRB)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Line width

m

Required

> 0

P

Line length

m

Required

> 0

RB

Bulk resistivity

micro-Ohm * cm

Required

³ 0

T

Thickness of TFR

m

Required

> 0

sub

Substrate name

none

Required

string



Notes

Netlist Form

MSTFRB:NAME n1 n2 W=val P=val RB=val T=val SUB=label

Netlist Example

MSTFRB:1 1 2 W=20MIL P=30MIL RB=19 T=1UM SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.
