Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS Thin-Film Capacitor, Physical, Cs, Q (MSTFCPEQ)

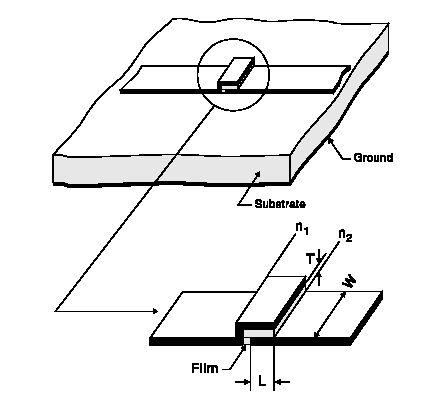

MS Thin-Film Capacitor, Physical, Cs, Q (MSTFCPEQ)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

L

Length of capacitor, assuming rectangular plate

m

Required

> 0

W

Width of capacitor, assuming rectangular plate

m

Required

> 0

CS

Sheet capacitance of film

pF/mm2

Required

> 0

Q

Quality factor of the thin film

none

1020

> 0

sub

Substrate name

none

Required

string



Notes

Netlist Form

MSTFCPEQ:NAME n1 n2 L=val W=val CS=val [Q=val] SUB=label

Netlist Example

MSTFCPEQ:1 1 2 L=200UM W=150UM CS=236.11PF Q=10 SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
