Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >

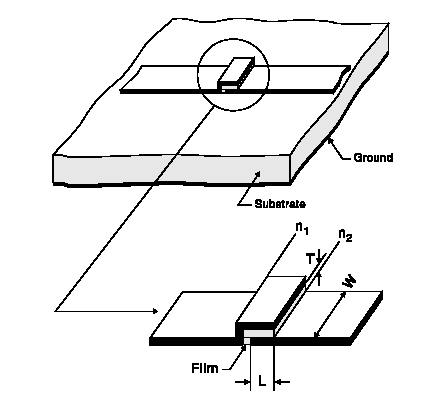

   MS Thin-Film Capacitor, Aspect Ratio, T, Tand (MSTFCEPTD)

MS Thin-Film Capacitor, Aspect Ratio, T, Tand (MSTFCEPTD)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

C

Capacitance

Farad

Required

> 0

AR

Aspect ratio AR=1/W

none

Required

> 0

T

Dielectric film thickness

m

Required

> 0

ER

Dielectric constant of film

none

Required

³ 1

TAND

Loss tangent of the thin film

none

0.0

³ 0

sub

Substrate name

none

Required

string



Notes

Netlist Form

MSTFCEPTD:NAME n1 n2 C=val AR=val T=val ER=val [TAND=val] SUB=label

Netlist Example

MSTFCEPTD:1 1 2 C=7.08PF AR=1.33 T=0.2UM ER=5.333 SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
