   MS Shorted Stub Near Ground, Physical Length (MSSSTG, MSSSTG_REF)

MS Shorted Stub Near Ground, Physical Length (MSSSTG, MSSSTG_REF)



[spacer]

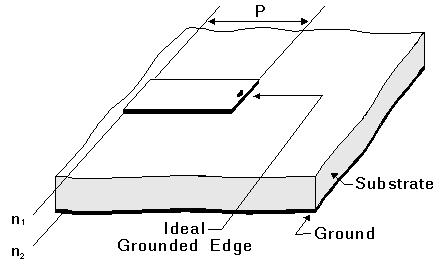

Schematic Symbol (MSSSTG)


Schematic Symbol (MSSSTG_REF)

[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Microstrip line width

m

Required

> 0

S

Spacing between strip and ground

m

Required

> 0

P

Physical length

m

Required



sub

Substrate name

none

Required

string



Notes

Netlist Form

MSSSTG:NAME n1 [ n2 ] W=val S=val P=val SUB=label

Netlist Example

MSSSTG:1 3 W=25MIL P=0.387IN S=0.05IN SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
