Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS Slit in Line (MSSLIT)

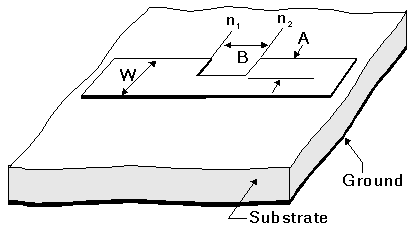

MS Slit in Line (MSSLIT)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

A

Dimension of slit in transverse direction

m

Required

³ 0

B

Dimension of slit in longitudinal direction

m

Required

³ 0

W

Conductor width

m

Required

> 0

sub

Substrate name

none

Required

string

CoSimulator

Simulation engine

none



Planar EM

CoSimStackup

Stackup used for simulation

none

Layout Stackup

Layout Stackup, Footprint stackup, Substrate



Notes

1. Conditions for ±4% accuracy:
F £ 18GHz
0.2 £ W/H £ 10
B < 4×W×B << lg
0.1 £ A/W £ 0.9

Netlist Form

MSSLIT:NAME n1 n2 W=val A=val B=val SUB=label

Netlist Example

MSSLIT:SLIT1 1 2 W=20MIL A=15MIL B=5MIL SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
