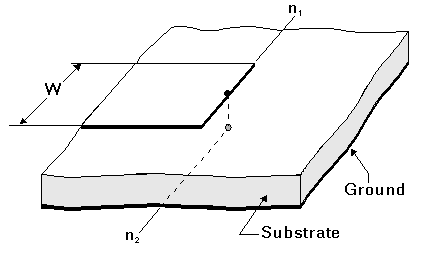

   MS Open End Effect (MSOPEN)

MS Open End Effect (MSOPEN)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Microstrip line width

m

Required

> 0

OPEN

OPEN=NEG means a negative open-end effect is applied (used for de-embedding)

none

POS

{POS|NEG}

sub

Substrate name

none

Required

string



Notes

1. For ±2.5% accuracy:
F[GHz] < 708/H[MILS]
ER £ 50
0.01 £ W/H £ 100

2. The transmission line is extended by a DL length, which is a function of the dielectric constant, frequency, and physical dimensions of the line. If the OPEN keyword is set to NEG, a negative effect is applied. This holds true for the length extension DL, as well as the associated dielec­tric losses.

3. Radiation loss is included if the cover height, HU, is not defined in the corresponding .SUB statement.

Netlist Form

MSOPEN:NAME n1 [ n2 ] W=val [OPEN={POS,NEG}] SUB=label

Netlist Example

MSOPEN:1 2 W=14mil SUB=sub1

where sub1 needs to be defined in the corresponding .sub statement.

References
