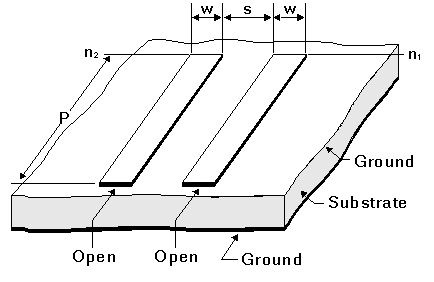

   MS Coupled Lines w/Open Ends Same Side, Symmetric (MSOCPL)

MS Coupled Lines w/Open Ends Same Side, Symmetric (MSOCPL)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Microstrip line width

m

Required

> 0

S

Spacing between the coupling lines

m

Required

> 0

P

Coupling length

m

Required



sub

Substrate name

none

Required

string

CoSimulator

Simulation engine

none



Planar EM

CoSimStackup

Stackup used for simulation

none

Layout Stackup

Layout Stackup, Footprint stackup, Substrate



Notes

1. For accurate results, the following conditions should be satisfied:
1.0 £ ER £ 18.0 and 0.1 £ W/H £ 10.0 and 0.1 £ S/H.

2. This model includes the even and odd mode equivalent fringing lengths at the open ends. If P=0, only the end extension effect is considered.

Netlist Form

MSOCPL:NAME n1 n2 W=val S=val P=val SUB=label

Netlist Example

MSOCPL:CPL 1 2 W=14.771MIL S=2.002MIL P=0.05CM SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.
