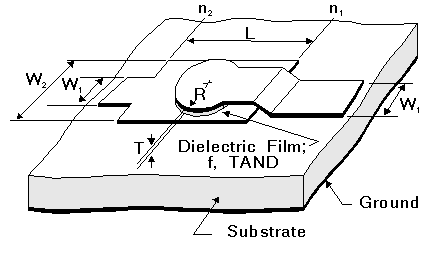

MS MIM Circular Capacitor, Loss Specified (MSMIMRT)

MS MIM Circular Capacitor, Loss Specified (MSMIMRT)

Properties	Description	Units	Default	Range
L	Length of the bottom plate of the capacitor	m	Required	> 0
W1	Width of the microstrip feeder line	m	Required	> 0
W2	Width of the bottom plate	m	Required	> 0
T	Dielectric film thickness	m	Required	> 0
R	Radius of upper plate	m	Required	> 0
ERF	Dielectric constant of film	none	Required	³ 1
TAND	Loss tangent of the dielectric film	none	0.0	³ 0
sub	Substrate name	none	Required	string

Notes

1. Film dielectric losses can be accounted for by specifying the dielectric loss tangent, TAND, of the thin film.

MSMIMRT:NAME n1 n2 L=val W1=val W2=val T=val R=val ERF=val
+ [TAND=val] SUB=label

MSMIMRT:MIMRT 1 2 L=101UM W1=70UM W2=106UM T=.1UM ERF=6.3 R=50UM SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.
