MS MIM Circular Capacitor, Q Specified (MSMIMRQ)

MS MIM Circular Capacitor, Q Specified (MSMIMRQ)

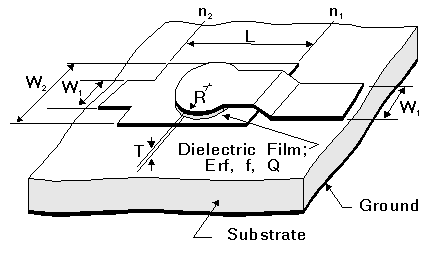

Properties	Description	Units	Default	Range
L	Length of the bottom plate of the capacitor	m	Required	> 0
W1	Width of the microstrip feeder line	m	Required	> 0
W2	Width of the bottom plate	m	Required	> 0
T	Dielectric film thickness	m	Required	> 0
R	Radius of the upper plate	m	Required	> 0
ERF	Dielectric constant of the film	none	Required	³ 1
Q	Quality factor of the thin film	none	10²⁰	> 0
sub	Substrate name	none	Required	string

Notes

1. Film dielectric losses can be accounted for by specifying the quality factor Q of the thin film.

MSMIMRQ:NAME n1 n2 L=val W1=val W2=val T=val R=val ERF=val [Q=val] SUB=label

MSMIMRQ:MIMRQ 1 2 L=101UM W1=70UM W2=106UM T=0.1UM ERF=6.3 R=50UM Q=23 SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.
