Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS MIM Capacitor, C and Q Specified (MSMIMCQ)

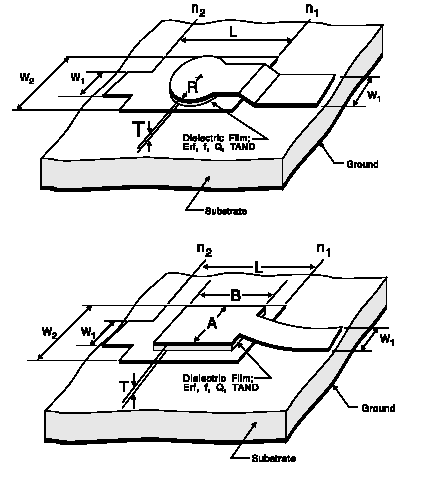

MS MIM Capacitor, C and Q Specified (MSMIMCQ)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

L

Length of the bottom plate of the capacitor

m

Required

> 0

W1

Width of the microstrip feeder line

m

Required

> 0

W2

Width of the bottom plate

m

Required

> 0

C

Capacitance of the MIM capacitor

Farad

Required

> 0

Q

Quality factor of the thin film

none

1020

> 0

sub

Substrate name

none

Required

string



Notes

1. Film dielectric losses can be accounted for by specifying the quality factor Q of the thin film.

Netlist Form

MSMIMCQ:NAME n1 n2 L=val W1=val W2=val C=val [Q=val] SUB=label

Netlist Example

MSMIMCQ:MIM2 1 2 L=101UM W1=70UM W2=107UM C=1.33PF SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
