MS MIM Rectangular Capacitor, Loss Specified (MSMIMAT)

MS MIM Rectangular Capacitor, Loss Specified (MSMIMAT)

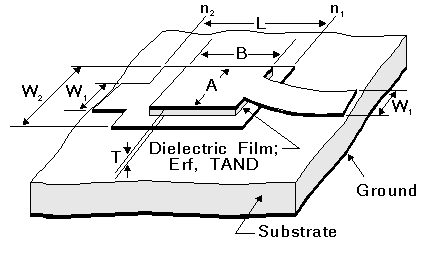

Properties	Description	Units	Default	Range
L	Length of the bottom plate of the capacitor	m	Required	> 0
W1	Width of the microstrip feeder line	m	Required	> 0
W2	Width of the bottom plate	m	Required	> 0
T	Dielectric film thickness	m	Required	> 0
A	Width of the upper plate	m	Required	> 0
B	Length of the upper plate	m	Required	> 0
ERF	Dielectric constant of the film	none	Required	³ 1
TAND	Loss tangent of the dielectric film	none	0.0	³ 0
sub	Substrate name	none	Required	string

Notes

1. Film dielectric losses can be accounted for by specifying the dielectric loss tangent, TAND, of the film.

MSMIMAT:NAME n1 n2 L=val W1=val W2=val T=val A=val B=val ERF=val [TAND=val] SUB=label

MSMIMAT:MIM1 1 2 L=101UM W1=70UM W2=106UM T=0.17UM ERF=6.3 A=50UM B=40UM SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.
