Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS Air Bridge (MSJUMP)

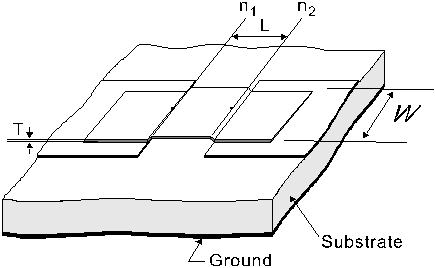

MS Air Bridge (MSJUMP)



[spacer]



[spacer]




Properties

Description

Units

Default

Range

W

Width of jump wire

m

Required

³ 0

T

Thickness of jump wire

m

Required

³ 0

L

Length of jump wire

m

Required

³ 0

R

Resistivity of cross-over metal

micro-Ohm ∗ cm

0.

³ 0

sub

Substrate name

none

Required

string



Notes

1. The height of the cross-over above ground plane is taken to be the substrate thickness plus 2mils.

Netlist Form

MSJUMP:NAME n1 n2 W=val T=val L=val [R=val] SUB=label

Netlist Example

MSJUMP:JUMP1 1 2 W=5MIL T=1MIL L=10MIL SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References
