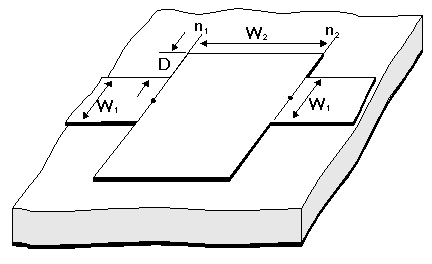

MS Double Stub, Single Stub Length Specified (MSDSTBD)

MS Double Stub, Single Stub Length Specified (MSDSTBD)

Properties	Description	Units	Default	Range
W1	Width of feed line	m	Required	> 0
W2	Width of the stub	m	Required	> 0
D	Length of the single stub (does not include the half-width of the feed line)	m	Required	> 0
NSUM	Number of modes used in the field expansions	none	5	[1,50]
sub	Substrate name	none	Required	string
CoSimulator	Simulation engine	none		Planar EM
CoSimStackup	Stackup used for simulation	none	Layout Stackup	Layout Stackup, Footprint stackup, Substrate

Notes

1. The following condition should be satisfied to get accurate results with default value of NSUM (NSUM=5):
H/l_g< 1.0, where l_g is the wavelength in the substrate dielectric material.

2. MSDSTBD models the open-end effect at each end of the D dimension and will not degenerate to a transmission line as D approaches zero.

Netlist Form

MSDSTBD:NAME n1 n2 W1=val W2=val D=val [NSUM=val] SUB=label

Netlist Example

MSDSTBD:1 1 2 W1=2mm W2=6.8mm D=6mm SUB=sub1

where sub1 needs to be defined in the corresponding .sub statement.

References
