Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
MS Crossover, Tand (MSCROD)

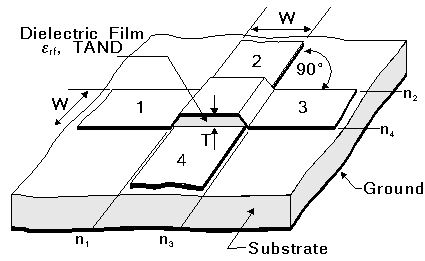

MS Crossover, Tand (MSCROD)

Properties	Description	Units	Default	Range
W	Width of the two microstrip lines	m	Required	> 0
T	Thickness of the dielectric layer between the two lines	m	Required	> 0
ERF	Dielectric constant of the dielectric layer	none	Required	³ 1
TAND	Loss tangent of the dielectric layer	none	0.	³ 0
sub	Substrate name	none	Required	string

Notes

The angle between the crossing lines is 90°.

Netlist Form

MSCROD:NAME n1 n2 n3 n4 W=val T=val ERF=val [TAND=val] SUB=label

Netlist Example

MSCROD:CROD1 1 2 3 4 W=2MM T=2MM ERF=2.0 TAND=0.01 SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References

1. T. Uwano, R. Sorrentino, and T. Itoh, “Characterization of Stripline Crossing by Transverse Resonance Analysis,” IEEE Transactions on Microwave Theory and Techniques, Vol. MTT-35, No. 12, Dec. 1987, pp. 1369-1376.
