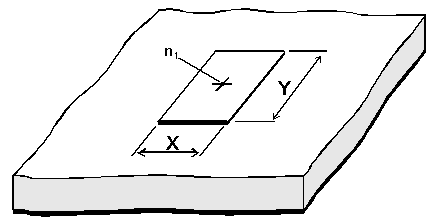

   MS Bond Pad (MSBPAD)

MS Bond Pad (MSBPAD)



[spacer]



Properties

[spacer]

Description

Units

Default

Range

X

Length of the bonding pad

m

Required

> 0

Y

Width of the bonding pad

m

X

> 0

sub

Substrate name

none

Required

string



Notes

1. The model includes dispersion effects.

2. If the width Y is not defined, the MSBPAD defaults to a square pad (Y=X).

Netlist Form

MSBPAD:NAME n1 [ n2 ] X=val [Y=val] SUB=label

Netlist Example

MSBPAD:BPAD1 1 X=140um Y=140um SUB=sub1

where sub1 needs to be defined in the corresponding .sub statement.
