Ansoft Designer / Ansys Designer 在线帮助文档：

System Simulator >
System Component Models >
Microstrip >
   MS Bend, Radial (MSBENDR)

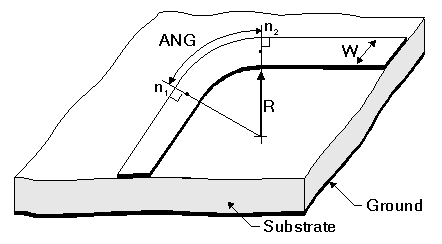

MS Bend, Radial (MSBENDR)



[spacer]



[spacer]



Properties

Description

Units

Default

Range

W

Width of lines

m

Required

> 0

R

Inner radius of curve

m

10-20

³ 0

ANG

Angle of bend

degree

90°

(0°,180°]

sub

Substrate name

none

Required

string

CoSimulator

Simulation engine

none



Planar EM

CoSim

Stackup

Stackup used for simulation

none

Layout Stackup

Layout Stackup, Footprint stackup, Substrate



Notes

Netlist Form

MSBENDR:NAME n1 n2 W=val [R=val] [ANG=val] SUB=label

Netlist Example

MSBENDR:BENDR1 1 2 W=0.025IN ANG=90. R=0.025IN SUB=SUB1

where sub1 needs to be defined in the corresponding .sub statement.

References

1. Wolff, G. Kompa, and R. Mehran, “Calculation method for microstrip discontinuities and T-junctions,” Electron. Lett., Vol. 8, 1972, pp. 177-179.

2. G. Kompa, and R. Mehran, “Planar waveguide model for calculating microstrip components,” Electron. Lett., Vol. 11, 1975, pp. 459-460.

3. T. Okoshi, Planar Circuits for Microwaves and Lightwaves, Springer-Verlag, Berlin, New York, 1983.
