Descrambler, 802.11a (DSCRM11A)

Descrambler, 802.11a (DSCRM11A)

Property	Description	Units	Default	Range/Type
MODULATION	Modulation Type	None	0	[0, 3]/Integer
CODING	Coding Rate Type	None	0	[0, 2]/Integer
LENGTH	Length of PSDU (number of octets)	None	100	[1, 4095]/Integer
S0	Initial state of the scrambler in decimal	None	93	[0, 127]/Integer
RIN	Input impedance	Ohm	Inf	(0, Inf]/Real
ROUT	Output impedance	Ohm	0	[0, Inf)/Real
Ports
Input	Bits before descrambling (integer)
Output	Bits after descrambling (integer)

Limits

Notes

1. This model can be used to descramble the DATA field, according to IEEE 802.11a standard. The structure is the same as scrambler, as shown in Fig.1. For details, please refer to the model SCRM11a.

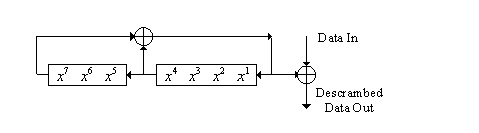

Fig.1 Data descrambler

Netlist Form

DSCRM11A:NAME n1 n2 [MODULATION =val] [CODING =val]
+ [LENGTH =val] [S0=val] [RIN=val] [ROUT=val]

Netlist Example

DSCRM11A:1 1 2 MODULATION = 2 CODING= 2 LENGTH = 100 S0 = 93

References

1. IEEE Std 802.11a, Part 11: “Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) specifications: High-speed Physical Layer in the 5 GHz Band,” ISO/IEC 8802-11:1999/Amd 1:2000(E).
