ANSYS Workbench Integration Overview > CAD Integration FunctionalityCAD Integration includes the following functionality. • DX analysis WB Update Project WB Update All Design Points • Parametric analysis with DSO • Geometry ![[spacer]](1p.gif){kind=small}

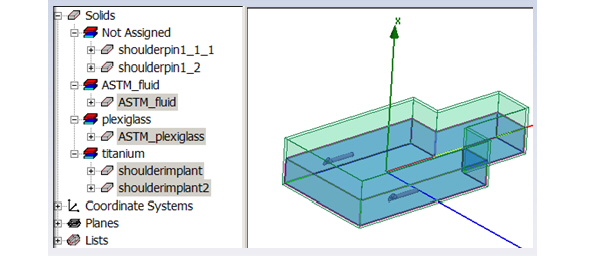

 For Explicit Subtraction • ANSYS Mechanical does not do implicit subtraction • Ansoft modeler command Modeler>Model Preparation>Perform Explicit Subtraction can do explicit subtractions before sending geometry to ANSYS. For example, consider the following model.

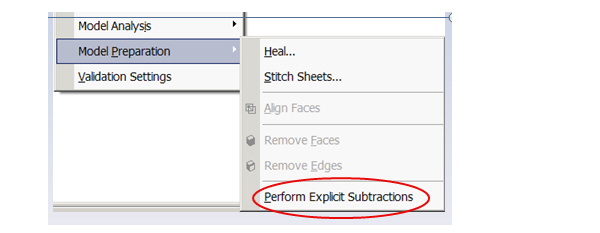

 Perform Explicit Substraction can be performed.

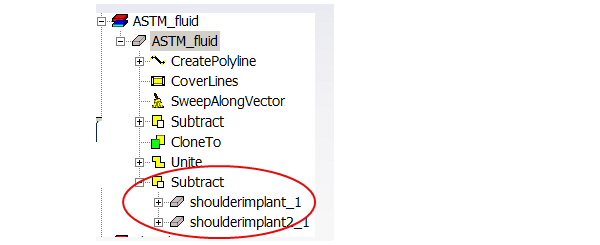

 The results appear in the History tree as shown:
 The Message window reports this action.
 Related Topics User Defined Model (UDM) for ANSYS WB Integration Ansoft to ANSYS Geometry Transfer Geometry Transfer through ANSYS DesignModeler (DM)
