Microstrip Low Pass Filter

Workflow

General Description

This example is a simple microstrip low pass filter. It is explained in detail in the CST DESIGN STUDIO Workflow manual.

Model Description

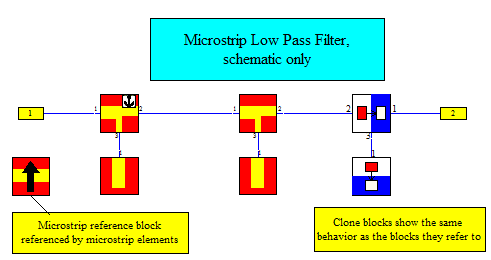

Only microstrip and clone blocks are used to create this structrue. This example contains the schematic only and can be used as a starting point when working through the CST DESIGN STUDIO Workflow manual.
