This example shows the assembly and project management functionality of CST DESIGN STUDIO. It is explained in detail in the CST DESIGN STUDIO Workflow manual.

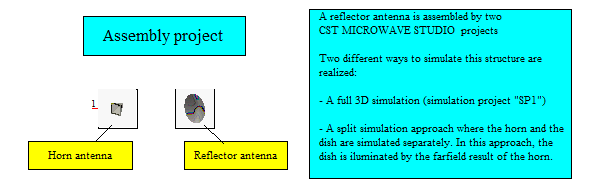

A reflector antenna is setup by assembling two individual
3D projects, the horn antenna and the dish, into one.
The example contains two simulations. The first one is performed on the
full 3D structure. The second simulates the horn antenna first, exports
its farfield and uses it in a second simulation as a illuminating source
for the dish.
