The spectral lines of a diode mixer are calculated according to the settings of the spectral lines task.

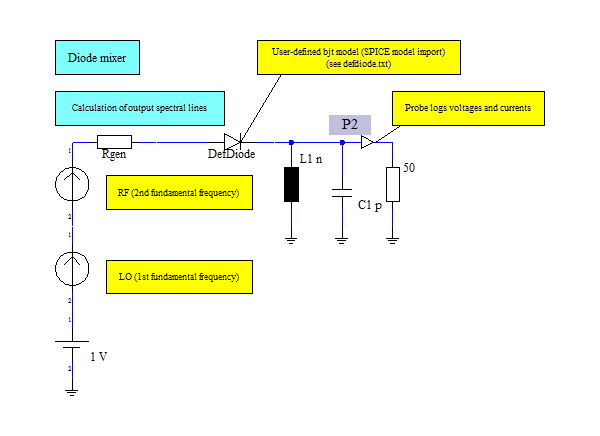

The model represents a single diode mixer circuit with one diode. The diode model is user-defined and imported from a SPICE file. The SPICE model definition can be found in the example directory (DefDiode.txt). The spectral lines for current and voltage are calculated at the probe's location.
