Voltage and current are calculated for a bandpass filter with circuit elements.

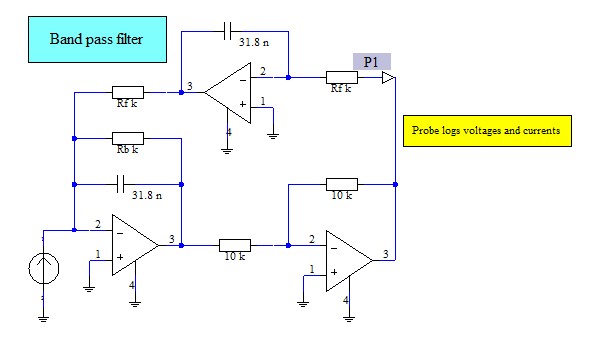

The simple bandpass consists of three operational amplifiers, one signal source and several basic circuit elements. A probe is positioned at the right side of the circuit. An AC task is performed to calculate voltage and current at the given frequency range (100 Hz - 100 kHz). The frequency sweep of the task as well as the x axis of the probe plots have been set to logarithmic.
