Path sources feed the calculation domain with a given current or voltage. Three different path sources are available:
|
|
|
|
|
|
|
|
|
|
|
|
Besides the purpose of feeding the calculation domain, path source definitions are also used for postprocessing steps such as inductance-, resistance- or impedance calculations.
Depending on which solver was used for the simulation a brief summary of important source parameters is added to the result tree after the simulation was completed:

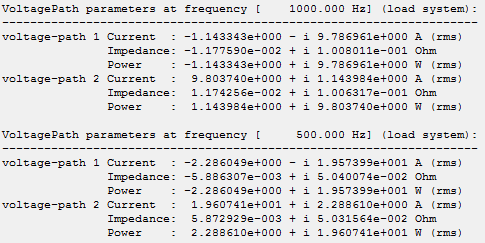

Voltage path parameters from a LF-solver run at two frequency points.
Due to mutual coupling the impedance values can be negative.

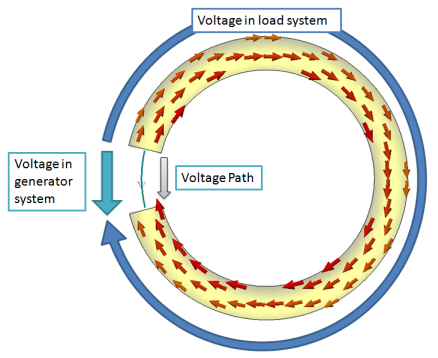

LF Solver note: The source values (voltage or current) are defined in the generator system, whereas the load system is used to compute the corresponding parameters (current or voltage, impedance and power).
|
|
|

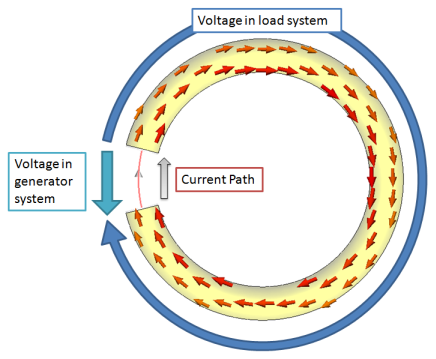

Current distributions for a voltage- and a current path source excitation. Note that voltage- and current paths are heading into opposite directions.
